Barco – Apollo – DOC-3197-2 – user's manual – Revision 08 – November 2006

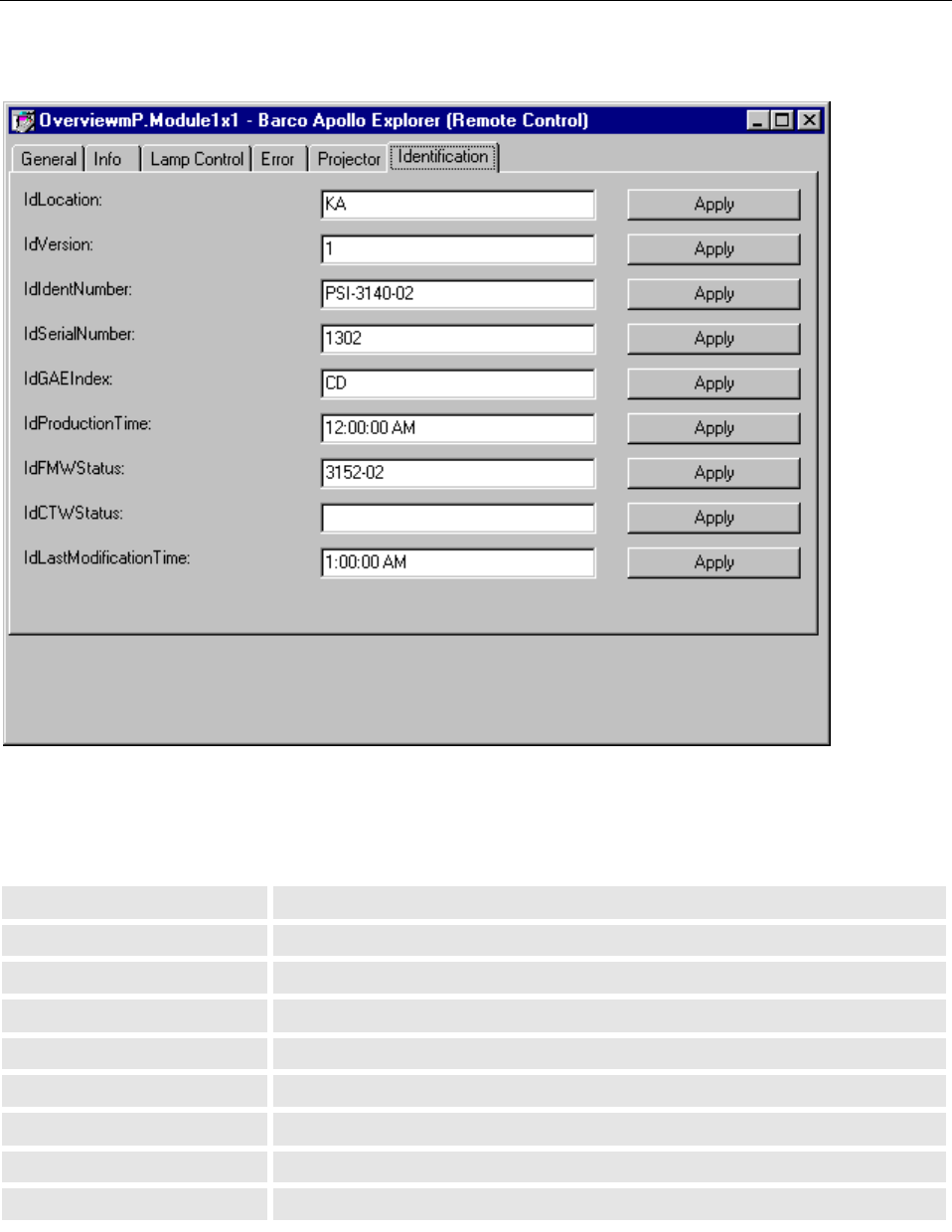

7.11.1.6 Identification
On this tab the "fingerprint" of the device can be found. Any on-site changes have to be entered in the respec-
tive text box.
IdLocation Informs about the location of production
IdVersion Informs about the version of the product
IdIdentNumber Indicates the identification number of the device
IdSerialNumber Indicates the serial number of the device
IdGAEIndex Informs about engineering changes
IdProductionTime Informs about the production time
IdFMWStatus Shows the Firmware status
IdCTWStatus Shows the Controlware status
IdLast Modification Time Informs when the last modifcation took place
